  • XCMG crawler excavator XE35U

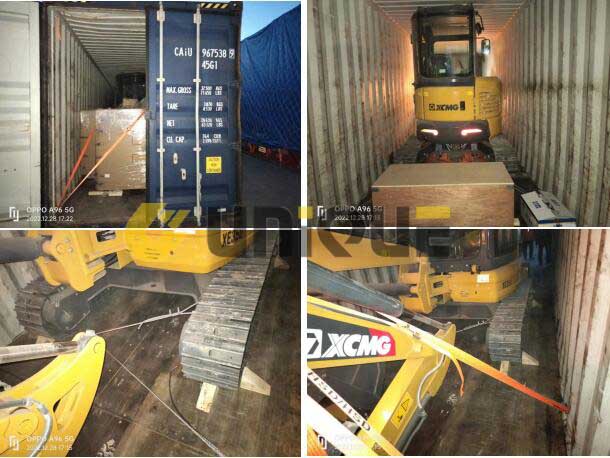

Recently, two units XCMG mini excavator XE35U were delivered to client by sea.

博茨瓦纳挖机 拷贝.jpg

XCMG XE35U 3 ton mini excavator

XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc. Advantages and highlights:



* More energy-conservation and environmental protection By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost. * More efficient return Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily. * More reliable and durable Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.

Model

Metric unit

XE35U

Operating weight

kg

4200

Bucket capacity

m3

0.11

Engine

Model


3TNV88-BPXG

Displacement Standard


Tier IIIA

Style

Direct injection

---

Four strokes

---

Water cooling

---

No. of cylinders

---

3

Output power

kW/ r/min

21.6/2400

torque/speed

N.m

107.2/1444

Displacement

L

1.642

Main performance

Travel speed(H/L)

km/h

3.6/2.2

Gradeability

%

58

Rotating speed

r/min

8.5

Ground pressure

kPa

36.6

Bucket digging force

kN

24.6

Arm crowd force

kN

17.8

Appearance size

A

Overall length

mm

4960

B

Overall width

mm

1740

C

Overall height

mm

2535

D

Width of platform

mm

1585

E

Length of crawler

mm

2220

F

Overall width of chassis

mm

1740

G

Width of crawler

mm

300

H

Track length on ground

mm

1440

I

Crawler gauge

mm

1721

J

Clearance under counterweight

mm

587

K

Min. ground clearance

mm

297

L

Min. tail swing radius

mm

870

Working scope

A

Max. digging height

mm

5215

B

Max. dumping height

mm

3760

C

Max. digging depth

mm

3060

D

Max. vertical wall digging depth

mm

2260

E

Max. digging reach

mm

5415

F

Min. swing radius

mm

2170
