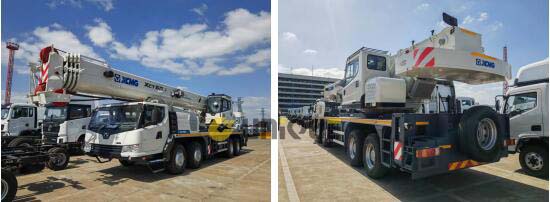

Recently, one unit customized XCMG 60 ton right hand drive truck crane XCT60-Y was delivered to client by sea.
XCMG telescopic truck crane XCT60_Y is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Performance Characteristics:
1. Telescopic crane XCT60_Y adopts 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 60 t; the max. lifting height is 59.8 m; The performance takes the lead comprehensively.
2. XCMG telescopic truck crane XCT60_Y is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.
3. Abundant configurations suitable for various working conditions, meet the requirements of applications such as all oil fields and government projects.
Item | Unit | Parameter |
Dimensions (length x width x height) | mm | 14090×2790×3630 |
Total vehicle mass in travel configuration | kg | 42200 |
Axle load | 1st and 2nd axle | kg | 16200 |
3rd and 4th axle | kg | 26000 |
Engine rated power/rpm | kW/(r/min) | 247/2200 |
Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 |
Max. travel speed | km/h | 90 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 250 |
Approach angle | ° | 18/10 (front protective device included) |
Departure angle | ° | 13 |
Max. grade ability | % | 36 |
Fuel consumption per 100 km | L | 36 |
Max. total rated lifting capacity | t | 60 |
Min rated working radius | m | 3 |
Max. load moment | Base boom | kN.m | 2009 |
Fully-extended boom | kN.m | 1113 |
Outrigger span | Longitudinal | m | 6.1 |
Lateral | m | 7.1 |
Hoist height | Base boom | m | 11.3 |
Fully-extended boom | m | 43.6 |
Boom length | Base boom | m | 11.5 |
Fully-extended boom | m | 44 |
Jib offset angle | ° | 0、15、 30 |
Boom raising time | s | ≤40 |
Boom fully extending time | s | ≤90 |
Hoistin
Hoisting speed (single line, 4th layer, no load) | Main winch | m/min | ≥130 |
Auxiliary winch | m/min | ≥130 |
