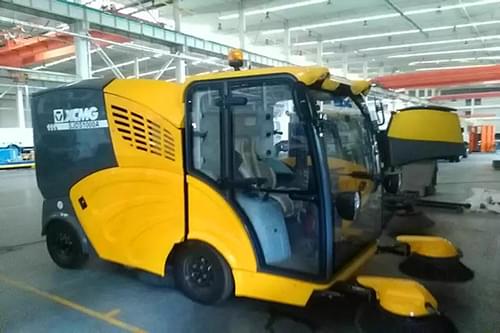

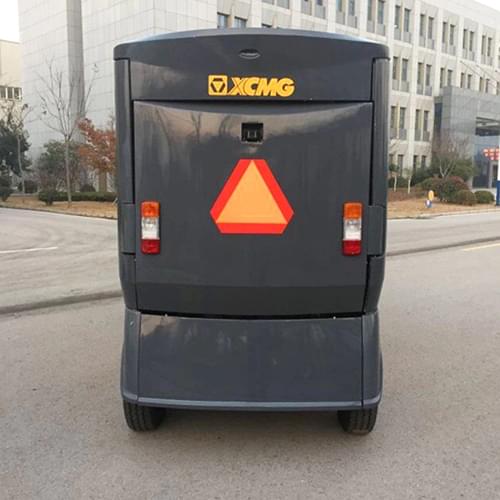

SJDS1000A Road Sweeper
1. A novel and fashionable appearance: The bee-shape philosophy is integrated upon the corporation with the Research Institute for industrial design. It is close to the nature, giving a good annotation to the sanitation worker’s value and the philosophy of environmental protection.
2. A simple one-key operating system: It is simple and easy to learn. It can be operated by ordinary sanitation workers.
3. An advanced battery management system: Monitor the status of every battery in real time; help the driver to accurately master the working time, give better protection to the battery pack, and make it more convenient for battery maintenance.
4. Convenient wireless operation and control: Tip-over and resetting of the dustbin and opening/closing of the dustbin door can be wireless controlled. It is safe and sanitary.
5. An advanced and efficient dusting method: The pulse dusting method is adopted, with high dusting efficiency.
6. Extensive auxiliary functions: Humanization design of radio and tape player, air conditioner, phone charger and reversing camera
7. A liquid crystal display is provided for all-round display of the street sweeper information.
8. Swinging and lifting of the sweeper is operated with an operating handle. It is simple and intuitive.
Overall Dimension  | 3600×1875×2190mm  |
Total Weight  | 2800kg  |
Curb Weight  | 1800kg  |
Max.Sweeping Width  | 2200mm  |
Sweeping Speed  | 3-10km/h  |
Max.Sweeping Capacity  | 22000m²/h  |
Max.Discharging Angle  | ≥48°  |
Max.Inhaled Particles  | ≥110mm  |
Stainless Steel Dustbin Volume  | 1 m³  |
Stainless Steel Water Tank Volume  | 200 L  |
Battery Model  | Lithium iron phosphate power battery CA400FI  |
Charge Time  | 8-10h  |
Battery Capacity  | 400A·h  |
Continuous Working Hours  | 8h  |
Driving Motor Model  | 176ZD502H12F(5.5KW/48V )  |
Dust Removal Method  | Spray dust removal+Pulse dust removal  |
