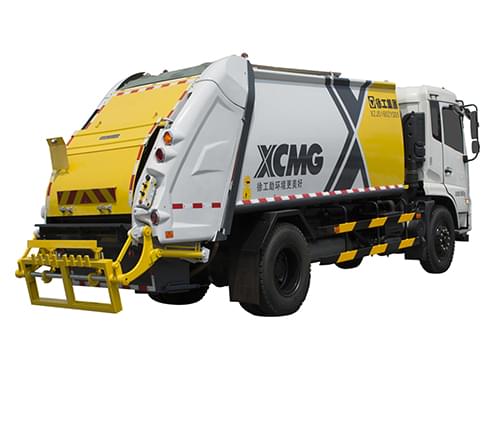

XCMG Garbage Trucks  6-24 Cbm Garbage Compressed Truck for sale.

Compressed garbage truck is dedicated to the collection of urban residents living garbage and other compressed garbage sanitation vehicles, compressed garbage truck by the sealed trash, hydraulic system, operating system components.

The vehicle is fully sealed, self-compression, self-dumping, compression process of sewage into the sewage tank, a more thorough solution to the garbage transport process of secondary pollution problems, the key components imported parts, with pressure, Good sealing, easy operation, safe and laborious advantages.

Mainly equipped with compressed garbage truck and loading and unloading garbage truck, which can be equipped with compressed after the garbage truck collection device, bucket collection device, swing arm collection device, hanging iron collection device, the user can Different need to choose a different collection device.


item

index

product model

XZJ5080ZYSNBEV

chassis model

XGA1081BEVXAX

motor model

TZ365XS-YBM303

rated power

60kw

curb mass

5920 kg (no feeding device)

6090 kg (tipping bucket)

6040 kg (bucket shape)

total mass

8280kg

rated mass

2165 kg (no feeding device)

1995 kg (tipping bucket)

2045 kg (bucket shape)

overall dimension

6515 mm(no feeding device),6900 mm(tipping bucket),6795mm(bucket shape)×2100mm×2400 mm

wheel base

3360 mm

rave rail (hopper) volume

1.1m3

rave rail (hopper) dimension (width)

1430 mm

clearance of rave rail (hopper) (unloaded)

990 mm

compress mode

bi-directional compression

loading cycle time

≤18s

garbage discharge time

≤20s

effective volume of garbage tank

6m3

drain tank volume

200L

garbage compression density

0.7~0.8 T/m3

hydraulic system rated pressure

16.2MPa

operating mode

Automatic operation/ operation by hand or by electricity/manual operation/remote operation
