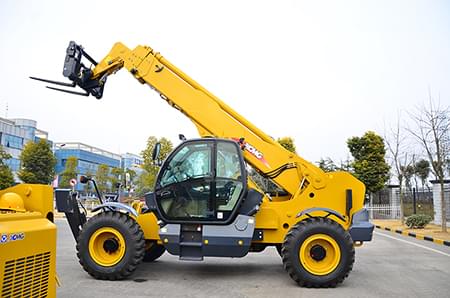

XCMG Official XC6-4517K 4.5 ton 17 m telescopic handler telehandler.

Product Overview
XC6-4517K telescopic handler is a representative product of our K series telescopic handlers. This product is equipped with imported Cummins engine of strong and reliable power and imported axles and transmission of stable drive. The full-hydraulic wet brake is applied to ensure driving safety. The four-section telescopic boom structure features flexible operations, accurate forklifting, and automatic leveling, with the maximum lifting height up to 16.7m. It's a multifunctional high-efficiency small-sized construction machinery product.

Characteristics

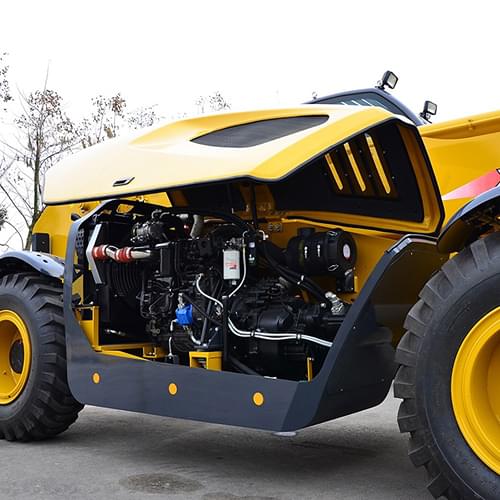

Powerful international brand engines. Special CARRARO transmissions and axles for smooth drive.
The international top-level full-hydraulic wet brake system features stable and reliable braking and guarantees driving safety.
The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
The frame leveling function equipped (The body is capable of 10º swing in both leftward and rightward directions) realizes powerful site adaptability and meets the needs of diversified working conditions.
The special overload control system guarantees operation safety and reliability.
The electrohydraulic proportional control for the working system features accurate, stable, and efficient operations.
Optional aerial working platform, bucket and various tools to meet customer needs.


Description

Unit

Parameter value

Gross weight

kg

13500

Engine power

kW

82(CUMMINS)/74.9(DDE)

Rated load

kg

4500

Maximum lifting height

mm

16700

Maximum forward reach

mm

12600

Effective load at maximum forward reach

kg

490

Center distance of load

mm

600

Luffing angle

°

-4~73

Fork angle

°

-90~18

Maximum traction force

kN

≥70

Gradeability

°

≥25

Maximum traveling speed

km/h

36

Turning radius

mm

≤5000

Braking distance

m

≤10 (Initial speed 32±2km/h)

Overall length

mm

6960

Overall width

mm

2500

Overall height

mm

2850

Wheelbase

mm

3900

Wheel tread

mm

2060

Fork length

mm

1200
