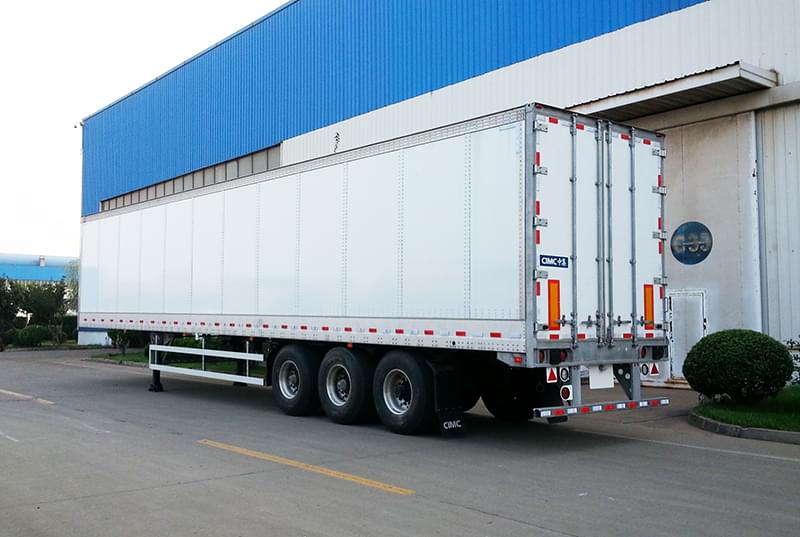

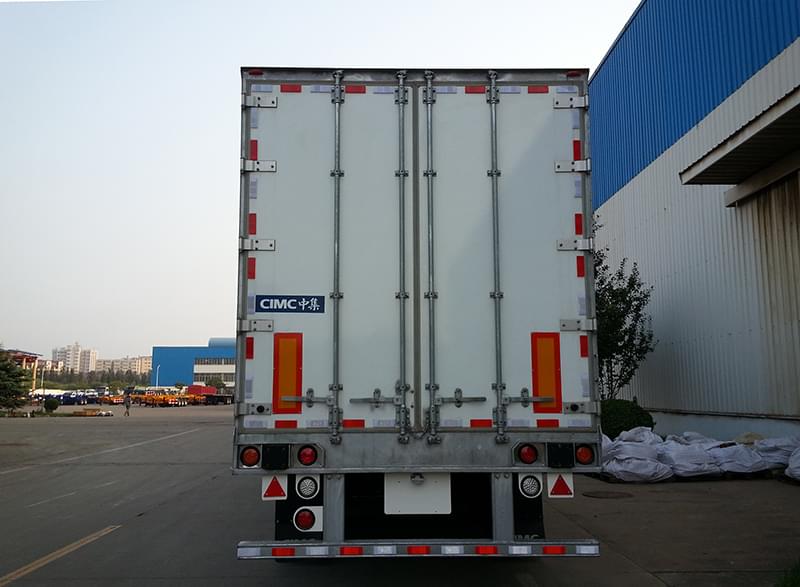

type | 3axle Aluminium Van Semi Trailer |
Model | ZJV9271XXY |
Parameter | dimension(mm) | length×width×height:13000×2550×2995mm |
king pin setting(mm) | 1263mm |
axle space(mm) | 6550mm+1310mm+1310mm |
tare weight（kg） | 7000kg |
payload （kg） | 50000kg |

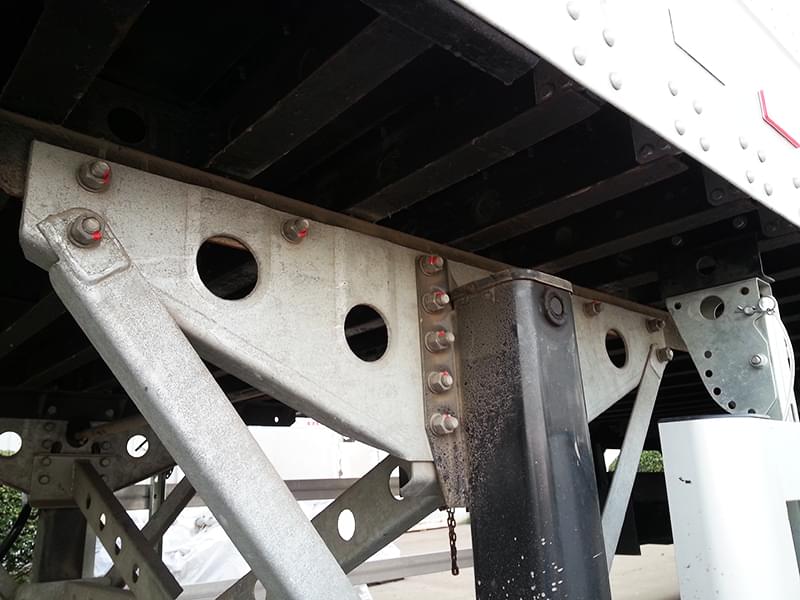

OEM | landing gear | JOSTC200 |
Kingpin | Jost 2' welded type |
brake system | Dual air brake system, WABCO brake valve |
ABS | Optional |
Suspension | Common mechanical/optional air suspension |
Axle | Fuwa Axle, 13 ton capacity/set,3pcs |
Tire | 12R22.5，equip 13 per chassis |
Rim | 9.0-22.5, equip 13 per chassis |
tool box | one set on right side, 1m steel |
spare tire carrier | equipped 2 sets per chassis |
