parameter

dimension(mm)

length×width×height:
14300×2500×3960

king pin setting(mm)

1200

fifth wheel height(mm)

1240

axle space(mm)

7810+1310+1310

registered tare weight（kg）

9500

registered payload （kg）

29500

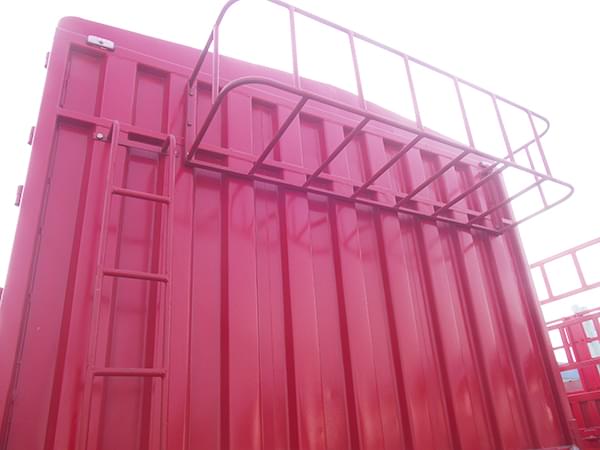

front wall

2400mm

side wall

600mm high

fence

500mm,two layer

floor

3mm checker plate

lock

8 retractable locks

hook

15 cast steel on each side of the platform

paint

primer + top coat

OEM

landing gear

FUWA 28T 19”

kingpin

3.5”JOST ,exchangeable

brake system

30/30 type on each axle,WABCO brake valve

ABS

no

suspension

CIMC mechanical suspension with 9 leaf spring.

axle

FUWA13T

tire

1200R20-18PR,equip 14 per chassis，RR202

rim

8.5V-20, equip 14 per chassis

tool box

1 steel box,1.6m,on right

spare tire carrier

2 units per chassis

color

Red

others

Marking: “LONG VEHICLE” sign on the rear end.

manufacture’s standard
