Flatbed Trailer with Single Point Suspension/Flatbed Trailer with Bogie Suspension
Type | 40feet flat bed semi-trailerwiththree-axles |
parameter
| Dimension (mm) | length×width×height: 12489X 2480X H |
kingpin setting (mm) | 1050 |
axlespace (mm) | 8200+1400 |
tareweight (kg) | approx. 7,500 |
Payload (kg) | 32, 500kg |
OEM | landinggear | JOST C200 |
kingpin | 2”JOST ,exchangeable |
brake system | Dual air brake system, WABCO brake valve |
ABS | no |

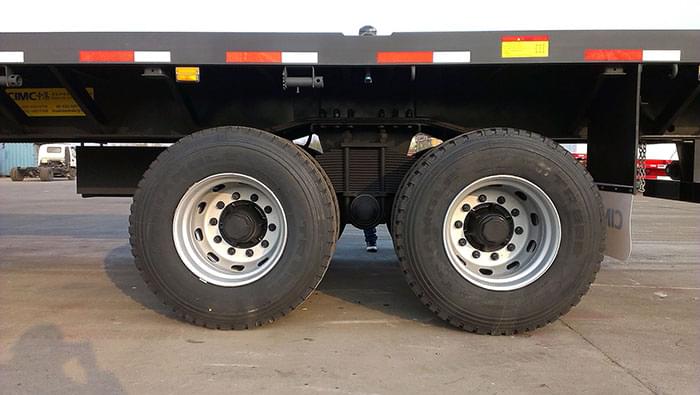

suspension | Single pointsuspension |
axle | FUWA13T |
tire | 11R22.5-16PRtires ，9 sets |
rim | 8.25*22.5, equip 9 sets |
toolbox | 2steelbox，stainlesssteellock |
spare tire carrier | 2unitsperchassis |
Water tank | none |
