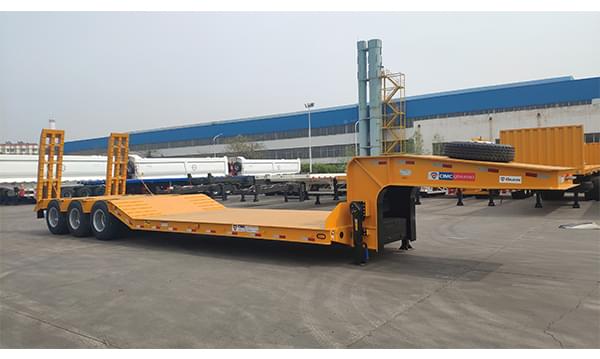

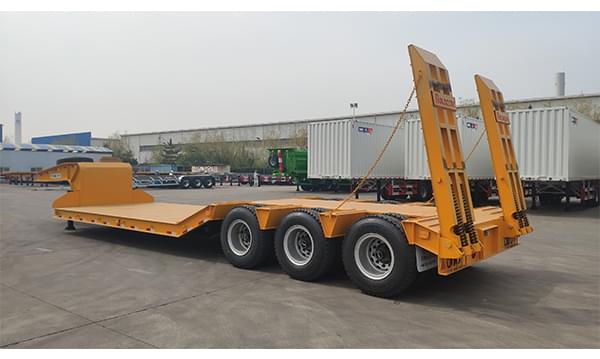

Type | Three Axles Concave Low Flatbed Semi-trailer |
Parameter | Dimension(mm) | length×width×height:14500×3050×H（The height will be adjusted according to the tractor specification） |
| Length of Loading Platform(mm) | approximate 5,600mm |
| Height of Loading Platform(mm) | approximate 650mm |
| King pin setting(mm) | 500 |
| Axle Space(mm) | 10155+1310+1310 |
| Tare Weight（kg） | approximate 12,000 |
| Payload （kg） | 60,000 |
| GVWR（kg） | 82,000 |
Fabric | Hook and Pull ring | 4 cast steel hooks and 3 pull ring on each side of the platform |
| Paint | primer + top coat |
OEM | Landing Gear | CIMC 30T |
| Kingpin | 2”, exchangeable |
| Brake System | 30/30 type on rear two axles, WABCO brake valve |
| ABS | No |
| Suspension | Mechanical suspension with 8 leaf |
| Axle | 13T，3 units |
| Tire | 11.00R20, equip 13 per chassis |
| Rim | 8.0-20, equip 13 per chassis |
| Tool Box | 1 set steel box,1m |
| Spare Tire Carrier | 1 unit per chassis |
