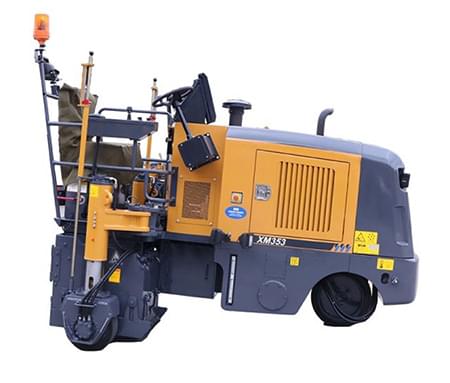

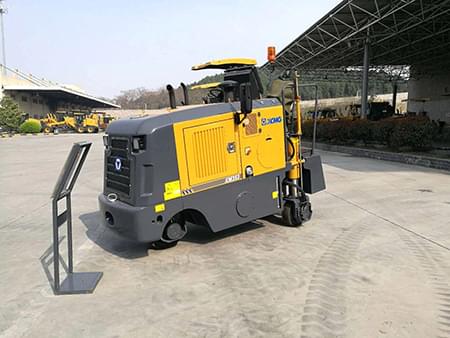

XCMG 0.35m XM353 Mini Cold Milling Machine
XM353 is a municipal maintenance type milling machine, which is mainly used in milling operation for city streets and country roads, can also be used on small scale of pavement maintenance pavement marking, milling around the manhole cover, pit slot digging, etc.; Besides, it can be used as auxiliary equipment of large milling machine, to meet the requirement of edge milling planing.
* Walking system: low speed three wheel walking, driven by full hydraulic system, which resolves the low gradeability and slipping phenomenon and cost reduction.

* Suspension system: rear wheel is independent suspension-type supporting wheel. The right rear wheel can swing back inward, easy to mill the edge.
* Milling system: adopt hydraulic mechanical transmission mode,stable and powerful; lmport tool bit, ensure the service life of the cutting tools.
* Milling depth control: right and left rear legs allow lifting adjustment and wedge-shape milling; Depth indicator is installed on the rear leg, to show the milling depth. This device has optional automatic leveling system.
* Steering system: full hydraulic steering, convenient and flexible manipulation.
* Sprinkler system: fan shaped nozzles spray the water to the tool bits for cooling, at the same time also reduce the dust diffusion. The large capacity water tank can make the machine continuous work for longer hours. Electric pumps, high pressure spraying, sprinkler nozzles are easy to disassembly and clean.
* Brake: two systems of service braking and parking braking.
* Lighting system: this machine is equipped with night work head lamp, convenient for operation at night.


Item
Unit
XM353
Milling width
mm
350/500
Maximum milling depth
mm
120
Tool nose distance
mm
12
Number of tools

36/48
Rotor diameter with tool

580
engine model

BF4M2012-10T3R
Rated speed
rpm
2200
Rated power
kw
72
Emission Standards

China III
Fuel tank
L
110
Hydraulic oil tank
L
70
Water tank
L
260
Working speed
m/min
0-40
Walking speed
km/h
0-5.6
Theoretical climbing ability
%
50
Total weight
kg
4800
Minimum milling radius
mm
130
Ground clearance
mm
120
