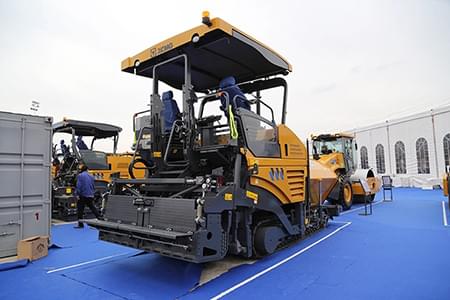

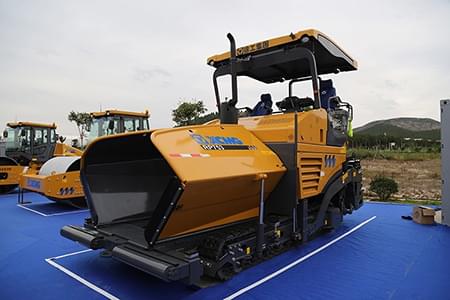

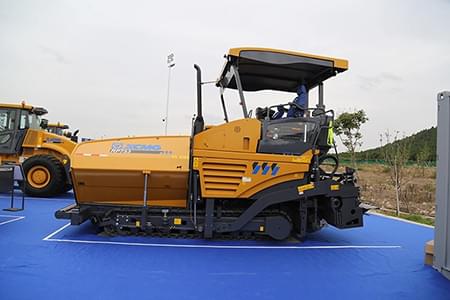

XCMG pave width 7.5m RP753 road concrete paver 140KW rasphalt paver machine
Drive left and right independent drive, microcomputer control, constant speed automatic control technology for paving speed, SC7H190 water-cooled supercharged engine of Shangchai (optional Deutz engine BF6M2012).

Using a three in-one powerful composite radiator, left and right transmission, and material distribution four sets of independent hydraulic system transmissions, high wear-resistant alloy material for the material-discharging blades, imported wear-resistant steel plate for the feeding floor and the screed bottom plate, and the left and right material-dispensing devices can be easily moved up and down to accommodate different paving thicknesses. A horizontal automatic leveling system ensures the flatness of the paving. Centralized lubrication system.


Item
RP753
Dimension
6545×2880×4000mm
Weight
18.7-25t
Driving speed
3km/h
Basic pave width
2.5-7.5m
Maximum pave width
7.5m
Maximum layer thickness
350mm
Maximum paving speed
20m/min
Hopper capacity
14t
Maximum laydown rate
600t/h
Rate power
140/2000 kw/rpm
