  • XCMG 300HP GR3003 motor graders equipment china rc tractor road wheel motor grader
  • Product category : Motor Grader
  • Brand : XCMG
  • Product origin : CHINA
  • Delivery time : 1-90DAYS
  • Supply capacity : 1-500UNITS
  • Email : sales@xzunique.com
  • Send Inquiry Now

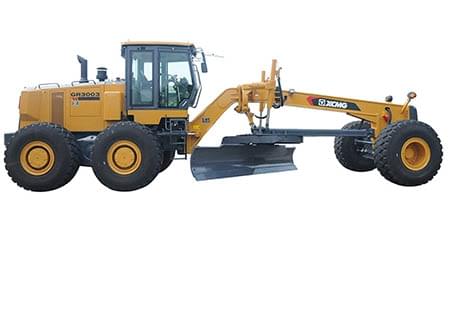

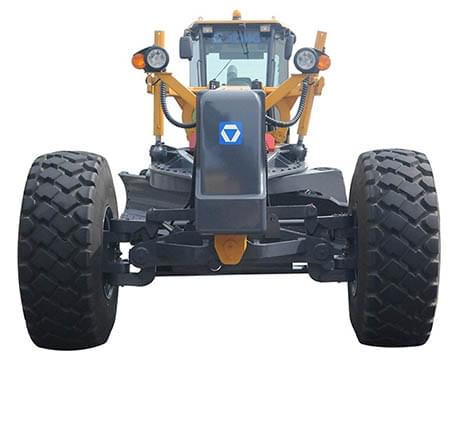

XCMG 300HP GR3003 motor graders equipment .

♥ The engine adopts EFI technology, and the emission of the whole engine meets the Euro III standard.

♥ Worm wheel box with overload protection, shovel tool has floating function.

♥ Adopt load sensing hydraulic system.

♥ Adopting color LCD and virtual instrument, it has the functions of electronic detection and three-level fault alarm.

♥ The transmission adopts electro-hydraulic control power shift, and the shift mode is king-shaped.

♥ Wet brake drive axle and double circuit hydraulic system are adopted for braking.

♥ The cab upholstery pillars are fully packed, with dual-purpose air conditioning, defrosting and fresh air exchange functions.

♥ High strength wear-resistant blade, long life.

♥ The whole machine meets CE certification requirements.


ItemGR3003
Basic parametersEngine modelQSL 9
Rated power/speed224kW/2100rpm
Overall dimension (standard)10500X3100X3550
Total weight (standard)26000kg
Tire specification23.5R25
Ground clearance (front axle)430mm
Tread2745mm
Space of front and rear axles7550mm
Space of middle and rear wheels1893mm
Performance parametersForward velocity5,8,11,19,23,40km/h
Reverse speed5,11,23km/h
Tractive effort f=0.75140kN
Maximum gradeability25%
Tire inflation pressure360kPa
Working system pressure22MPa
Working parametersMaximum steering angle of front wheel±45°
Maximum slant angle of front wheel±17°
Maximum oscillating angle of front axle±15°
Maximum oscillating angle of equilibrium box±15°
Maximum steering angle of frame±27°
Minimum turning radius8.3m
Scrape knifeMaximum lift height450mm
Maximum cutting depth500mm
Maximum tilt angle90°
Cutting angle28°—70°
Angle of revolution360°
Length & chord height4877x787mm
Oil filling amountCoolant50L
Fuel tank385L
Engine24L
Transmission38L
Balancing box46L
Drive axle28L
Hydraulic oil135L
ItemGR3003
Basic parametersEngine modelQSL 9
Rated power/speed224kW/2100rpm
Overall dimension (standard)10500X3100X3550
Total weight (standard)26000kg
Tire specification23.5R25
Ground clearance (front axle)430mm
Tread2745mm
Space of front and rear axles7550mm
Space of middle and rear wheels1893mm
Performance parametersForward velocity5,8,11,19,23,40km/h
Reverse speed5,11,23km/h
Tractive effort f=0.75140kN
Maximum gradeability25%
Tire inflation pressure360kPa
Working system pressure22MPa
Working parametersMaximum steering angle of front wheel±45°
Maximum slant angle of front wheel±17°
Maximum oscillating angle of front axle±15°
Maximum oscillating angle of equilibrium box±15°
Maximum steering angle of frame±27°
Minimum turning radius8.3m
Scrape knifeMaximum lift height450mm
Maximum cutting depth500mm
Maximum tilt angle90°
Cutting angle28°—70°
Angle of revolution360°
Length & chord height4877x787mm
Oil filling amountCoolant50L
Fuel tank385L
Engine24L
Transmission38L
Balancing box46L
Drive axle28L
Hydraulic oil135L
