  • XCMG 220HP GR2153 motor graders equipment china rc tractor road wheel motor grader
  • Product category : Motor Grader
  • Brand : XCMG
  • Product origin : CHINA
  • Delivery time : 1-90DAYS
  • Supply capacity : 1-500UNITS
  • Email : sales@xzunique.com
  • Send Inquiry Now

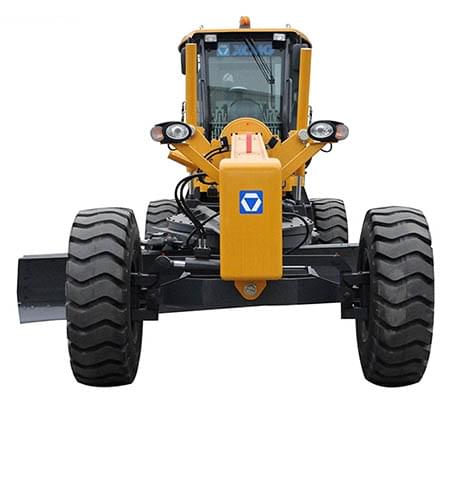

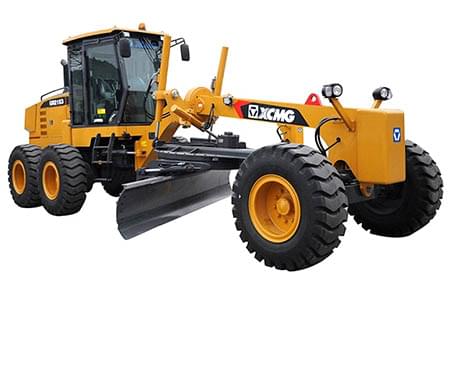

XCMG 220HP GR2153 motor graders equipment.

1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%


2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine


3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.


4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.


ItemGR2153
Basic parametersEngine modelQSB6.7
Rated power/speed164kW/2000rpm
Overall dimension (standard)8970x2625x3420
Total weight (standard)16500 kg
Tire specification17.5-25
Ground clearance (front axle)430mm
Tread2156mm
Space of front and rear axles6219 mm
Space of middle and rear wheels1538 mm
Performance parametersForward velocity5,8,11,19,23,38km/h
Reverse speed5,11,23km/h
Tractive effort f=0.7585 kN
Maximum gradeability≥25%
Tire inflation pressure260kPa
Working system pressure20MPa
Transmission pressure1.3—1.8Mpa
Working parametersMaximum steering angle of front wheel±48°
Maximum slant angle of front wheel±17°
Maximum oscillating angle of front axle±15°
Maximum oscillating angle of equilibrium box±15°
Maximum steering angle of frame±27°
Minimum turning radius7.3m
Scrape knifeMaximum lift height400mm
Maximum cutting depth500mm
Maximum tilt angle90°
Cutting angle28°—70°
Angle of revolution360°
Length & chord height4270x610mm
Oil filling amountCoolant50L
Fuel tank280L
Engine24L
Transmission38L
Balancing box46L
Drive axle28L
Hydraulic oil110L
