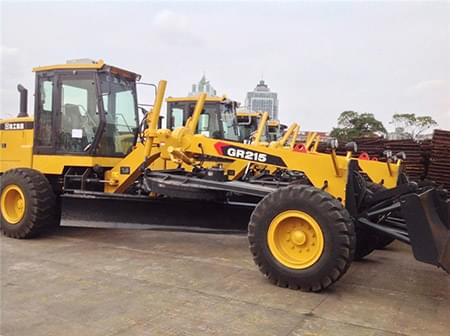

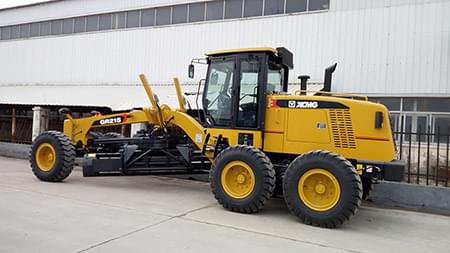

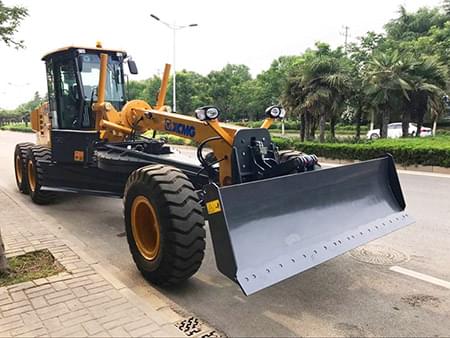

XCMG Official 215HP motor grader GR215.

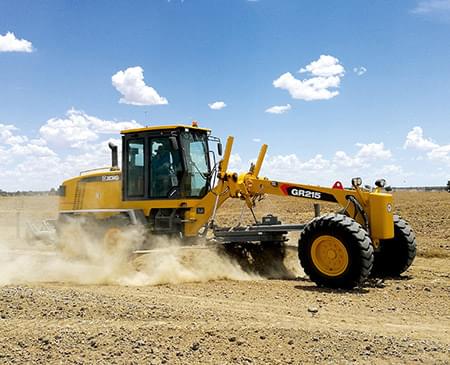

GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland.

The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.



Advantages and Highlights:



1. Dongfeng cummins engine, ZF technology gearbox and Meritor drive axle make the dynamic matching of transmission system more reasonable and reliable.



2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.



3. The double-circuit hydraulic brake system is applied to realize more reliable and stable braking.



4. The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system stability and reliability.



5. The XCMG's special enhanced working device is applied.


6. The blade body adopts adjustable large slide slot and double slideway mechanism and the blade plates are made of wear-resistant high strength materials.



7. The multiple optional parts expand the performance and working scope of machine.


Item

GR215

Basic parameters

Engine model

6CTA8.3-C215

Rated power/speed

160kW/2200rpm

Overall dimension (standard)

8970x2625x3420

Total weight (standard)

16500 kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Space of front and rear axles

6219 mm

Space of middle and rear wheels

1538 mm

Performance
parameters

Forward velocity

5,8,11,19,23,38km/h

Reverse speed

5,11,23km/h

Tractive effort f=0.75

87 kN

Maximum gradeability

20%

Tire inflation pressure

260kPa

Working system pressure

16MPa

Transmission pressure

1.3—1.8Mpa

Working parameters

Maximum steering angle of front wheel

±50°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

forwards15°, Reverse15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

450mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°—70°

Angle of revolution

360°

Length & chord height

4270x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Equilibrium box

46L

Coolant

28L

Hydraulic oil

110L
