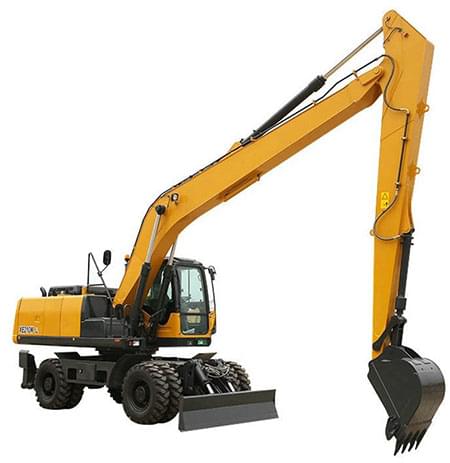

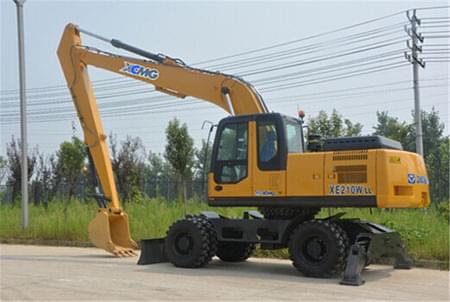

XCMG Excavator Long Reach 20 ton New Wheel Excavators Machine XE210WLL price.
This machine has used a new generation of independent researched and developed controllers as well as a compact parallel pump and focused on the matching between the engine power and the high-speed running to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.
As a model featuring excellent flexibility, high fuel efficiency and considerate operation reliability and based on the power system in accordance with the North America and Euro-III and China Stage-II emission standards, this machine can be provided with optional one-section booms, two-section booms, lengthened booms and other working mechanisms as well as other multi-functional implements, able to be widely used in highway bridges, housing construction, road engineering, construction of water conservancy works, port construction, general construction projects and other small and medium
Model  | Unit  | XE210WLL  | |
Operating weight  | Kg  | 20600  | |
Bucket capacity  | m³  | 0.5  | |
Engine  | Model  | /  | 6B5.9  |
Output power  | kW/r/min  | 133/2000  | |
Maximum torque/speed  | N.m  | 708/1500  | |
Displacement  | L  | 5.9  | |
Fuel tank  | L  | 305  | |
Main performance  | Rated flow  | L/min  | 2×220  |
Working Pressure  | MPa  | 31.4/34.3  | |
Hydraulic tank  | L  | 202  | |
Swing speed  | r/min  | 12  | |
Bucket digging force  | kN  | 80  | |
Arm digging force  | kN  | 70  | |
Min. turning radius  | mm  | 6500  | |
Travel speed  | km/h  | 9/31  | |
Gradeability  | %  | 70%  | |
Hydraulic system  | Main pump/Pilot pump  | /  | 2×Piston pump  |
Appearance size  | Overall length  | mm  | 10933  |
Overall width  | mm  | 2552  | |
Overall height  | mm  | 3763  | |
Counterweight clearance  | mm  | 1312  | |
Min. ground clearance  | mm  | 399  | |
tail turning radius  | mm  | 2820  | |
Wheel base  | mm  | 2960  | |
Tread width  | mm  | 1919  | |
Width of chassis  | mm  | 2495  | |
Distance from front bridge to rotary center  | mm  | 1900  | |
Hood height  | mm  | 2605  | |
Max. digging depth of dozer  | mm  | 58  | |
Dozer(width/height)  | mm  | 2495/564  | |
Working scope  | Max. digging radius  | mm  | 12622  |
Max. digging distance  | mm  | 12456  | |
Max. digging height  | mm  | 11843  | |
Max. dumping height  | mm  | 9665  | |
Max. digging depth  | mm  | 8690  | |
Max. vertical wall digging depth  | mm  | 5835  | |
Max. lifting height of dozer  | mm  | 508  | |
