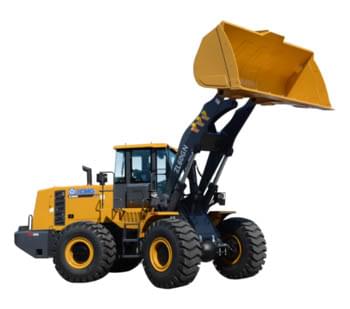

XCMG ZL60GN 6 ton small wheel loader .

1,The ≥17.4t traction force and ≥20.5t breakout force, conquer all kinds of harsh working conditions.


2,The 38º steering angle and the 3,350mm wheelbase adapt to various narrow working sites.


3,Electronic control transmission - heavy-duty electronic control fixed-axle gearbox  is in line with the international level in terms of reliability, operating comfort, versatility, and technical advancement and has gained multiple national patents.


4,Integrated cab - The super-large, full-view, ultra-quiet, and slightly pressurized cab is fitted with audio system and A/C, the joy-sticks are under follow-up status with the seat, and all control units are easily accessible to build the best operating environment.


5,Lightweight design technology - 's exclusive high strength skeleton frame system is applied.Through the dynamics simulation research and the in-depth finite element analysis, the lightweight design is taken to realize that the "load-carrying material ratio" is remarkably leading the industry products.


6,Patented bushing lubrication technology - The industry's pioneering bushing lubrication structure is applied to prolong the life of the hinge pins  more than one time.


 7,Patented double-limit technology - The combination mode of primary flexible limit and secondary rigid limit attenuates the impact onto the frame and improves the operating comfort.


Parameter Name
Parameter Values (mm)
Notes
Overall length
8505
The bucket is put flat on the ground.
Machine width
2860
Outside the wheels
Bucket width
3220

Overall height
3515
Cab roof
Axle base
3350

Wheel base
2265

Minimum ground clearance
440

Parameter Name
Parameter Values (mm)
Notes
Rated working load
6000kg

Bucket capacity
3.5 m3

Operating weight
20000±300kg

Forward I/II/III/IV Gear
6/11/20/34km/h

Reverse I/II/III/IV gear
6/11/20/34km/h

Maximum grade ability
28°

Unloading angel
43°

Unloading height
3170mm
Primary bucket cutting-board
Unloading distance
1200mm
Primary bucket cutting-board
Bucket digging force
205 kN

Maximum digging depth
82mm
The bucket is placed flat.
Boom lifting time
≤5.9

Total cycling time
≤10.9s

Outside of bucket
7100mm

Tire center
6005mm

Machine steering angle
±38°

Tire specification
23.5-25

Front wheel
0.44~0.46MPa

Rear wheel
0.38~0.40MPa
