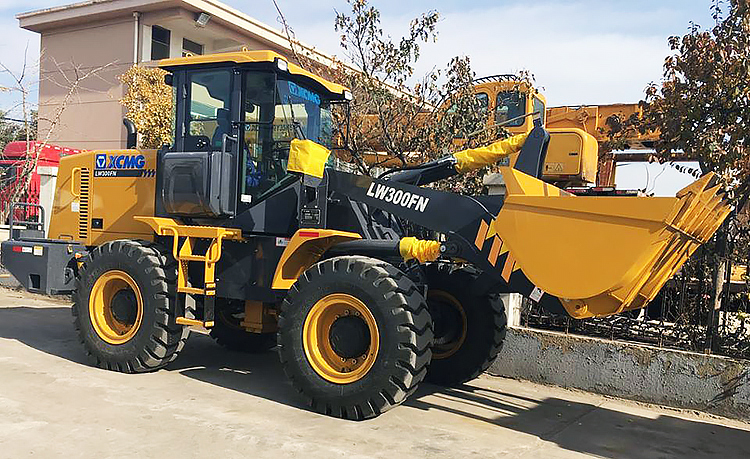

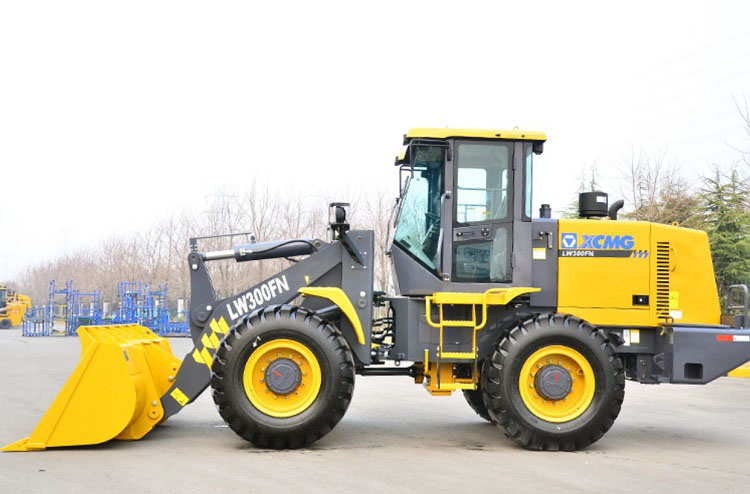

XCMG  3 ton front wheel loader LW300FN


In recent years, XCMG made numerous breakthroughs in loader technology development and continuously make history in loader industry. Implementation of “service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.


Main parameters

Rated load :3 tons

Bucket capacity :1.5~2.5m3


Main configuration

* DEUTZ engine WP6G125E22(92kw)

* Dry drive axle


Optional parts:

A/C/ 1.8m3 Blade bucket/ 2.1m3 Light material Blade bucket/ 2.5m3 Light material Blade bucket / 1.8m3 Reinforced bucket.


XCMG LW300FN is the most popular model of China 3t wheel loader, the updated edition of ZL30E (LW321F),With the features of maturity and reliability of the old model, LW300FN is improved all round, and leads in the same kind of product.


Performance Highlights:


Outstanding capability

With traction at ≥9t and breakout force at ≥13t. High adaptability, with turning radius at 5,165mm (tire center).


Market position:

Industry 3t single-model sales champion. Excellent quality power and drive systems.


High maturity and reliability:

The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites. The bucket is made of high strength material to realize high wear and impact resistance.


Optimized bucket shape:

The lengthened bucket bottom and the sharp bucket shape ease the penetration and realize higher bucket loading capacity.  The contracted flare angle and the reduced cross section ease penetration and lifting.


Diversified attachments:


1.Standard bucket: suitable for diversified working conditions.

2.Rock bucket: It's dedicated for handing of hard materials (such as rock), featuring good resistance against wear and impact.

3.Coal bucket: It's dedicated for handling of bulk materials (such as coal), featuring high bucket capacity and high efficiency.

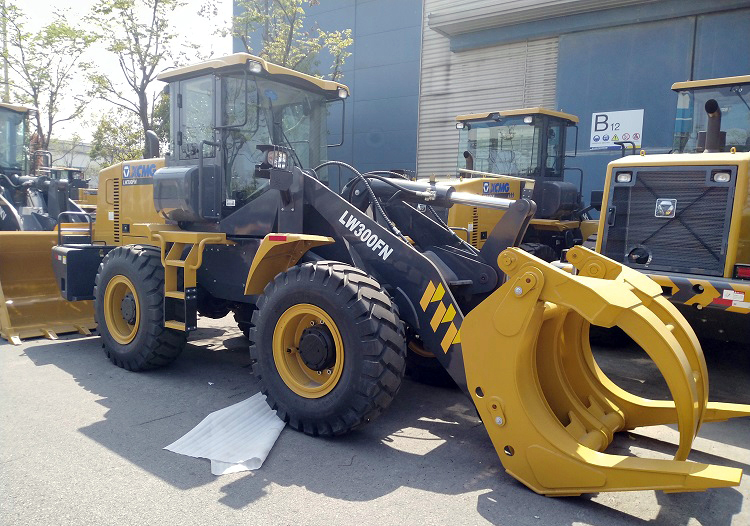

4.Clamp: For grab and transport of various woods and tubing.

5.Bale grabber: It's used for the grabbing and handling of various light materials in farms, biological power plants, and paper mills.

DescriptionUnitParameter value
Rated operating loadkg3000
Bucket capacity1.5~2.5
Machine weightkg10600±200
Dump clearance at maximum liftmm2770~3260
Reach at maximum liftmm1010~1210
Wheel basemm2600
Height of hinge at maximum lift heightmm3830
Working height(fully lifted)mm4870
Max.breakout forcekN130 powerkN95
Hydraulic cycle time-raises5.5
Total hydraulic cycle times10
Min. turning radius over tyresmm5165
Articulation angle°35±1
Tyre size
Overall machine dimension L×W×Hmm7050×2482×3118
Emission standards
Emission 2
Rated Power/SpeedkW/rpm92/2200
Fuel TankL170
Hydraulic TankL170
