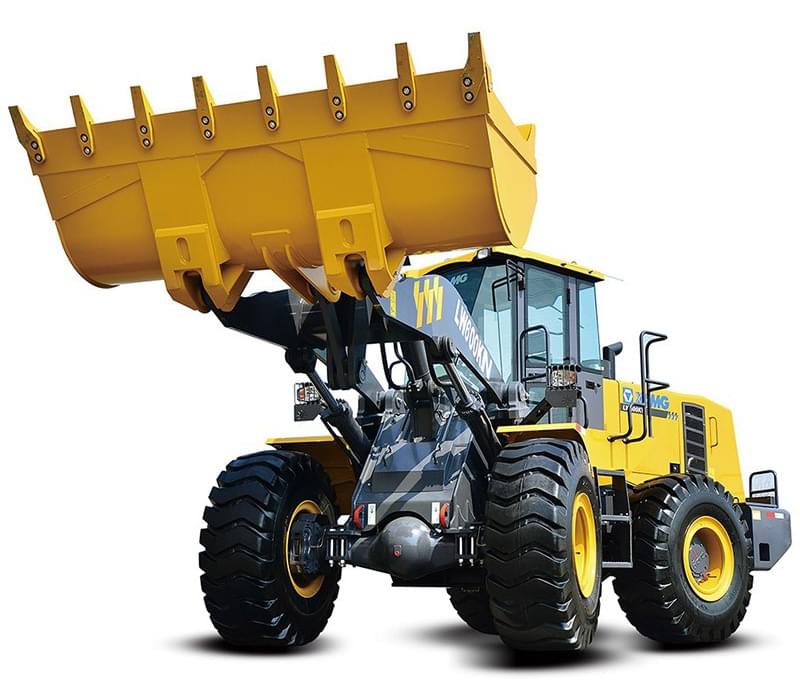

LW600KN Wheel Loader
1、The high-efficiency electronic control counter shaft transmission matches perfectly with the engine.
2、The three-stage air filter is designed especially for severe working environment of construction machinery industry.
3、The material and heat treatment for pump shaft connecting spline are improved and the forced lubrication is applied to prolong the life by 20%.
4、With optimized materials and processes, the main reducer and wheel reducer passed the industry’s leading reliability life test of >900,000 cycles.
5、The double-pump confluence/distribution technology is applied so that the steering pump preferentially supplies oil to the steering system.


Description

Specifications

Unit

Rated Load

6

t

Bucket Capacity

3.5

m3

Dumping reach

1200

mm

Breakout force

201

kN

Drawing force

171

kN

Raising Time

6

s

Total cycling time

10.9

s

Wheel base

2265

mm

Traveling speed



1st Gear (F/R)

6/6

km/h

2nd Gear (F/R)

11/11

km/h

3rd Gear (F/R)

22/22

km/h

4th Gear (F/R)

34/34

km/h

Engine

SHANGHAI


Model

SC11CB2401G2B1


Rated power

175/2200

kW/rpm

Overall dimensions (L*W*H)

8740*3020*3550

mm

Operating weight

20

t
