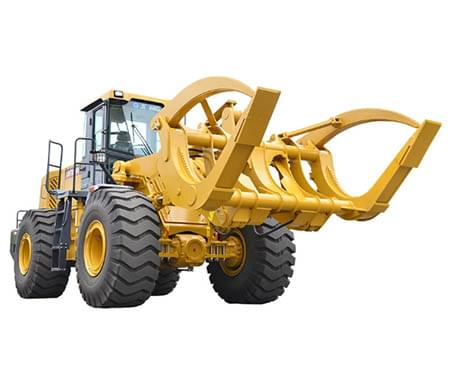

LW800KN Wheel Loader
1、The imported Cummins QSM11 electronic injection air-air inter-cooled, turbocharged engine with electronic start and stop device and high torque reserve coefficient enables the whole machine to have powerful traction force and rapid hydraulic response.

2、The low noise and high torque engine and the high capacity torque converter guarantee the maximum efficiency during low speed traveling to remarkably reduce the fuel consumption.

3、The hydraulic system adopts pilot control, steering flow amplifying, and working and steering confluence technology to realize low hydraulic power consumption, low energy consumption, and improved efficiency of the hydraulic system.

4、The hydraulic system adopts pilot control, steering flow amplifying, and working and steering confluence technology to realize low hydraulic power consumption, low energy consumption, and improved efficiency of the hydraulic system.

5、Compliance with environment protection requirements and output of clean emission.

Main specifications:



Description

Specifications

Unit

Rated Load

6

t

Bucket Capacity

3.5

m3

Dumping reach

1200

mm

Breakout force

201

kN

Drawing force

171

kN

Raising Time

6

s

Total cycling time

10.9

s

Wheel base

2265

mm

Traveling speed



1st Gear (F/R)

6/6

km/h

2nd Gear (F/R)

11/11

km/h

3rd Gear (F/R)

22/22

km/h

4th Gear (F/R)

34/34

km/h

Engine

SHANGHAI


Model

SC11CB2401G2B1


Rated power

175/2200

kW/rpm

Overall dimensions (L*W*H)

8740*3020*3550

mm

Operating weight

20

t
