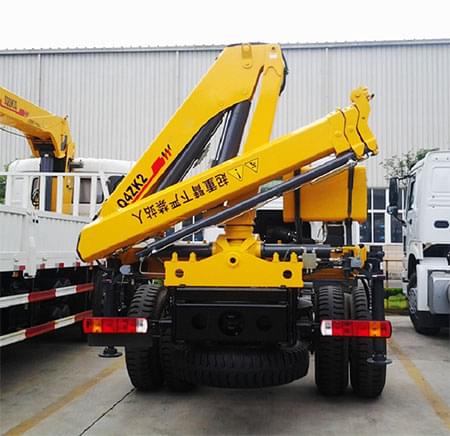

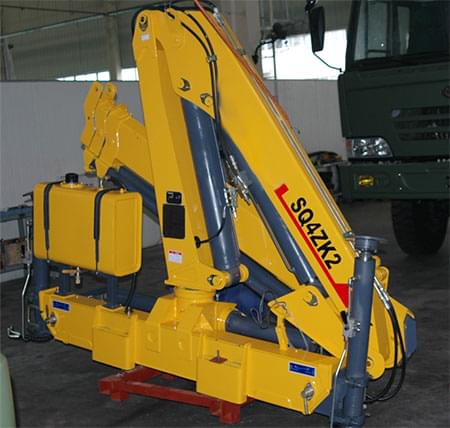

XCMG Official High Quality Small Lorry Crane SQ4ZK2 Good Price.

Single cylinder synchronization guy cable technology makes work efficiency higher than before.

Advanced development means make sure that the design is very reliable.

The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.

Compact hinge point design takes up smaller space.

The work is more safety after fitted with alarm device.

The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.

Float three –point bridge structure design can lower the accessional stress on the chassis when traveling.

It has been fitted own powerful slewing of working in diversifying conditions.

Anti-slewing impulse equipment makes vehicle running safety.


Parameter ItemUnitScale
Max Lifting Capacitykg4000
Max Lifting Momentt.m8.4
Recommend Powerkw14
Max Oil Flow of Hydraulic SystemL/min25
Max Pressure of Hydraulic SystemMpa26
Oil Tank CapacityL60
Crane Weightkg1200
Installation Spacemm850
Rotation Angle°370
