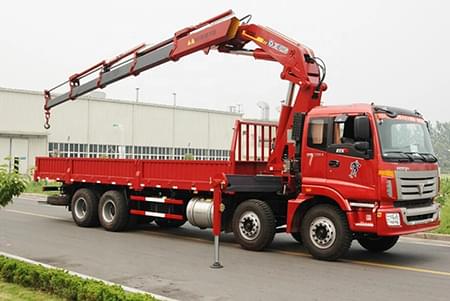

XCMG 16ton truck mounted crane Lorry mounted crane with foldable arm SQ16ZK4Q

Folding arm type truck crane product introduction

Hanging directly with a hook, generally with two luffing agencies, cargo curve movements. Generally in such a crane can be installed on a variety of accessories to achieve other special operating conditions. In my company's new technology platform to develop high-performance products, with distinctive features and cost-effective:

Safety

• Have multiple job safety protection measures

• Complies with CE, GOST and other safety requirements

Environmental protection

• Optimized structural design for lighter weight

• Optimized hydraulic system with less energy consumption

Reliable

High-strength materials are widely used

• Multiple protection of the control system

• Strict factory test

Leading

• Advanced product design

• Increasing the level of technology

• High level of manufacturing capacity

Folding arm type truck crane operating system

On the train and get off the use of a separate operation of the valve, the use of rotary valve to select the oil, on and off interlock, effectively reducing the risk of misuse. In addition to the car to operate the seat arrangement of the turntable side, with the turntable infinite rotation, with better control of the field of vision.

On the train and get off together to use a control valve, the crane on the standing control, simple and convenient operation process, with a better vision, the operation can directly see the situation inside the container.


ModelSQ16ZK4QUnit
Max Lifting Moment40t.m
Max Lifting Capacity16000kg
Recommend Power Needed At Recommend Oil Flow37kw
Max Oil Flow of Hydraulic System63L/min
Rated Pressure Of Hydraulic System31.5MPa
Oil Tank Capacity250L
Rotation Angle(360°) All Rotation
Crane Weight5000kg
Installation Space1500mm
Choice of ChassisNXG1310D3ZEX;BJ1317VNPJJ-S5;DFL1311A3 ;
SQ16ZK4Q Lifting capability diagram
Working radius(m)2.54.0985.8987.7489.61811.518
Lifting capacity(kg)1600096006600485035002600
