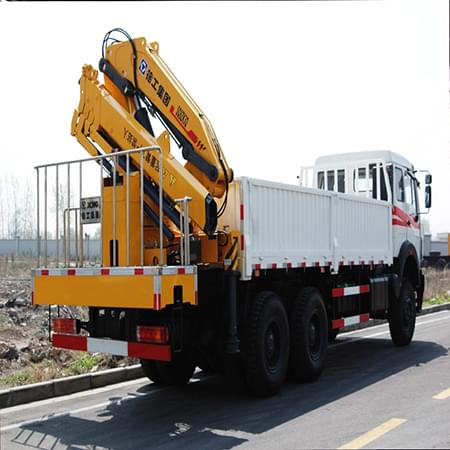

XCMG 8ton truck mounted crane Lorry mounted crane with foldable arm SQ8ZK3Q

Folding arm type truck crane product introduction

Hanging directly with a hook, generally with two luffing agencies, cargo curve movements. Generally in such a crane can be installed on a variety of accessories to achieve other special operating conditions. In my company's new technology platform to develop high-performance products, with distinctive features and cost-effective:

Safety

• Have multiple job safety protection measures

• Complies with CE, GOST and other safety requirements

Environmental protection

• Optimized structural design for lighter weight

• Optimized hydraulic system with less energy consumption

Reliable

High-strength materials are widely used

• Multiple protection of the control system

• Strict factory test

Leading

• Advanced product design

• Increasing the level of technology

• High level of manufacturing capacity

Folding arm type truck crane operating system

On the train and get off the use of a separate operation of the valve, the use of rotary valve to select the oil, on and off interlock, effectively reducing the risk of misuse. In addition to the car to operate the seat arrangement of the turntable side, with the turntable infinite rotation, with better control of the field of vision.

On the train and get off together to use a control valve, the crane on the standing control, simple and convenient operation process, with a better vision, the operation can directly see the situation inside the container.


Model

SQ8ZK3Q

Unit

Max Lifting Moment

16

t.m

Max Lifting Capacity

8000

kg

Recommend Power Needed At Recommend Oil Flow

28

kw

Max Oil Flow of Hydraulic System

40

L/mi

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

160

L

Rotation Angle

(360°)All Rotation

.

Crane Weight

2970

kg

Installation Space

1150

mm

Choice of Chassis

CA1176PK2L9T3A95 ;CA1170PK2L7T3EA80; CA1240PK2L7T4EA81; HFC1202KR1K3;EQ5161GFJ7;BJ1317VNPJJ-S5; EQ5201GFJ6;CA1200PK2L7T3EA80; LZ1160LCMTDFL1250A9;BJ5317ZNPJJ-S;CA1253P7K2L11T1E ;EQ1252GFJ;ND1255B50J

SQ8ZK3Q Lifting capability diagram

Working radius (m)

2

4.175

5.995

7.785

9.755

Lifting capacity (kg)

8000

3700

2400

1700

1250
