XCMG 12 ton Mobile Truck Hydraulic Crane XCT12
Product category : Truck Crane
Brand : XCMG
Product origin : CHINA
Delivery time : 1-90DAYS
Supply capacity : 1-500UNITS
Email : sales@xzunique.com
Send Inquiry Now

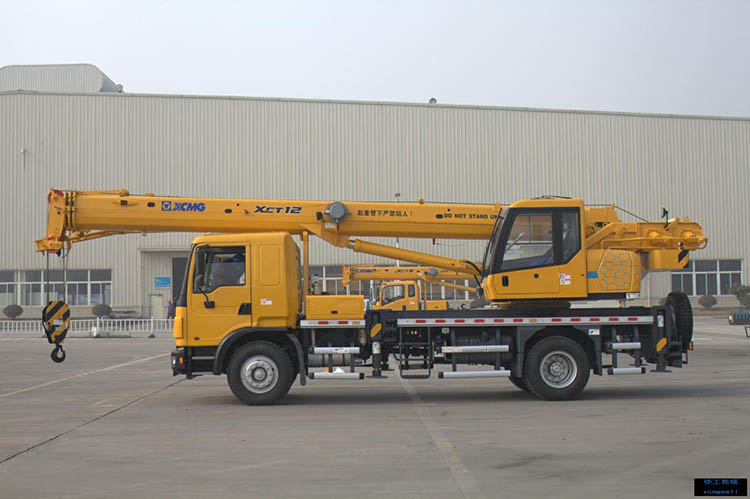

XCMG truck crane XCT12
4-section boom of 30.5 m with eight side profile is adopted; the max. lifting load is 12 t; the max. lifting height is 38.1 m; the max. working radius is 26 m; The performance takes the lead comprehensively.
The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min.
Precise and safe lifting movements can be realized.

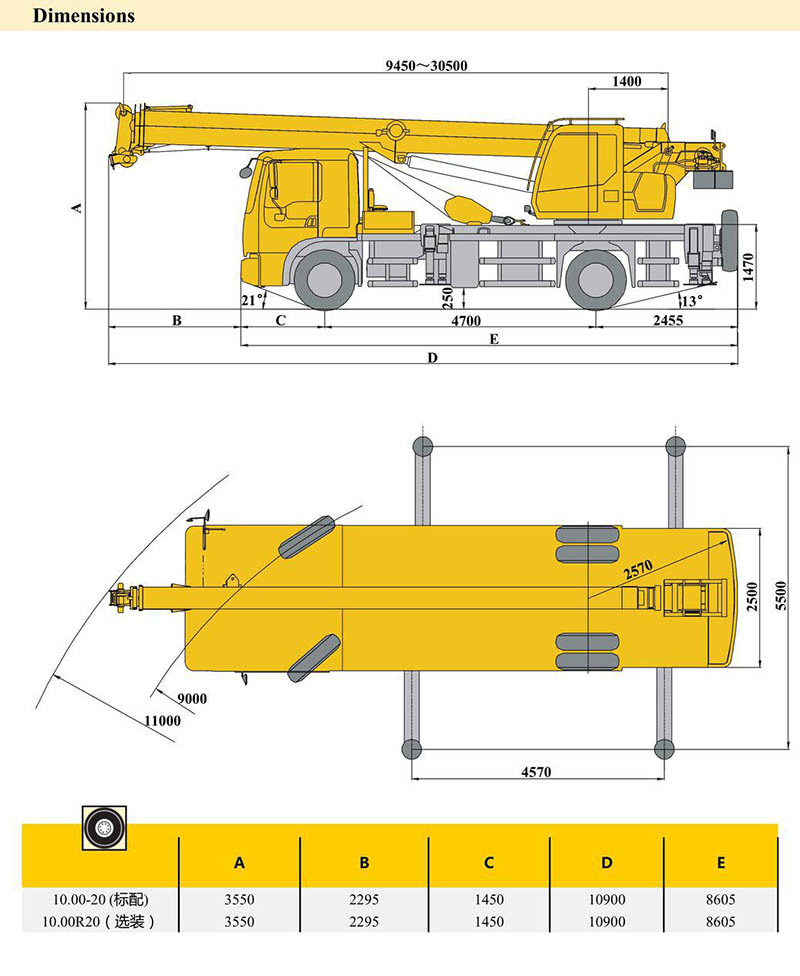

Dimension	Unit	XCT12L4
Overall length	mm	10900
Overall width	mm	2500
Overall height	mm	3550

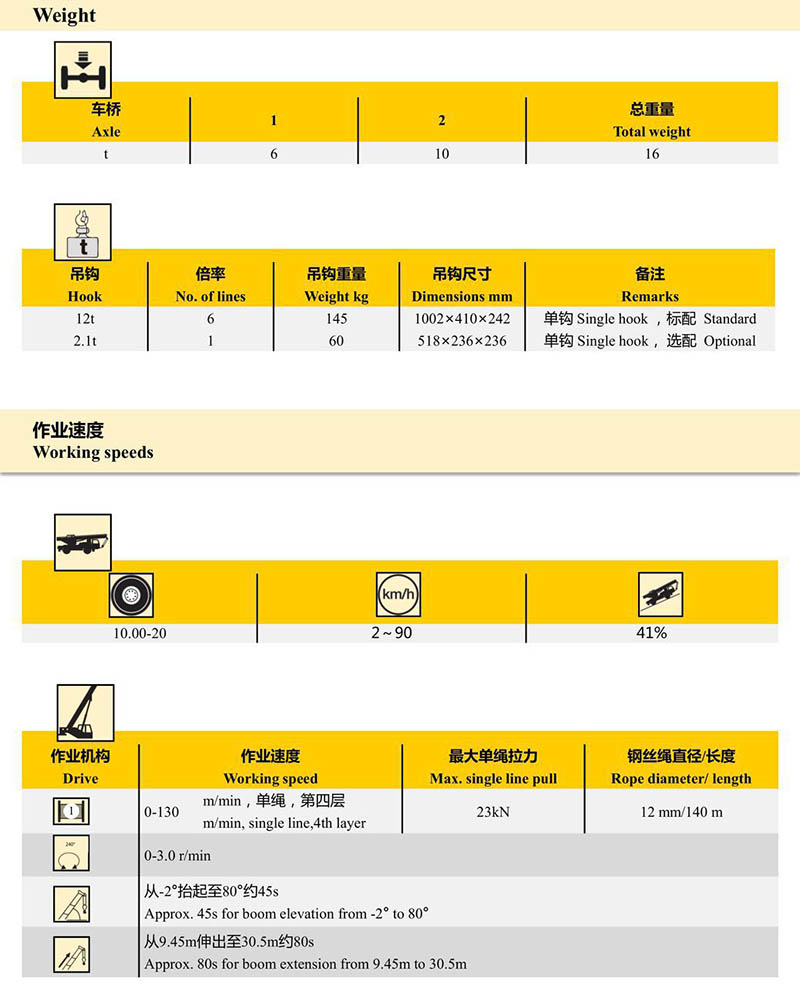

Weight
Total weight in travel	kg	16000
Power
Engine model		SC8DK230
Engine rated power	kW/(r/min)	170/2200
Engine rated torque	N.m/(r/min)	900/1400
Travel
Max. travel speed	km/h	90
Min. turning diameter	m	18
Min. ground clearance	mm	270
Approach angle	°	21
Departure angle	°	12
Fuel consumption for 100km	L	35
Main performance
Max. rated total lifting capacity	t	16
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.57
Max. load moment	kN.m	482.5
Base boom lifting height	m	9.9
Fully extended boom lifting height	m	31.1
Fully extended boom+ jib	m	39.4
Longitudinal outrigger span	m	5.0
Working speed
Boom full extension time	s	80
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	64/125
Max. speed of aux. winch (single rope) (no load)	m/min	64/125
