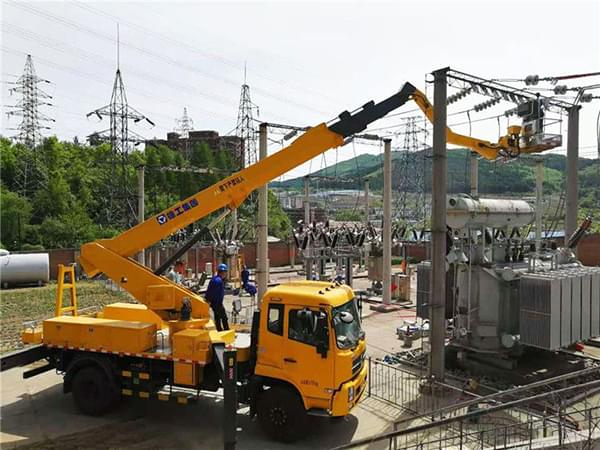

XCMG new 9m lift platform truck XGS5030JGKJ6 China hydraulic platform lifts bucket truck.

XCMG’s new 9m lift platform truck has a maximum operating height of 9.8m, a maximum operating range of 4.7m, and a bucket load of 150kg. It ranks first among similar height products in China and is well received by customers.



Performance characteristics:

1.Electro-hydraulic control, stepless speed regulation, superior operating performance.

2.Two operations of turntable and working bucket.

3.Built-in leveling mechanism to ensure that the working bucket is always level.

4.With emergency pump.


Item

Unit

parameter

Overall Dimension(LxWxH)

mm

4945x1700x2670

Power

kw

85

Max.working height

m

9.8

Max.working radius

m

4.7

Rated load

kg

150

Slewing angle

°

±360continuous

Number of passengers

person

2+3

Model

-

XGS5030JGKJ6

Model of engine

-

JX4D30B6H

Model of chassis

-

JX1041TSA6
