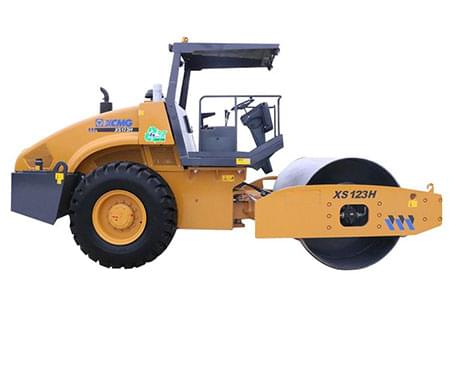

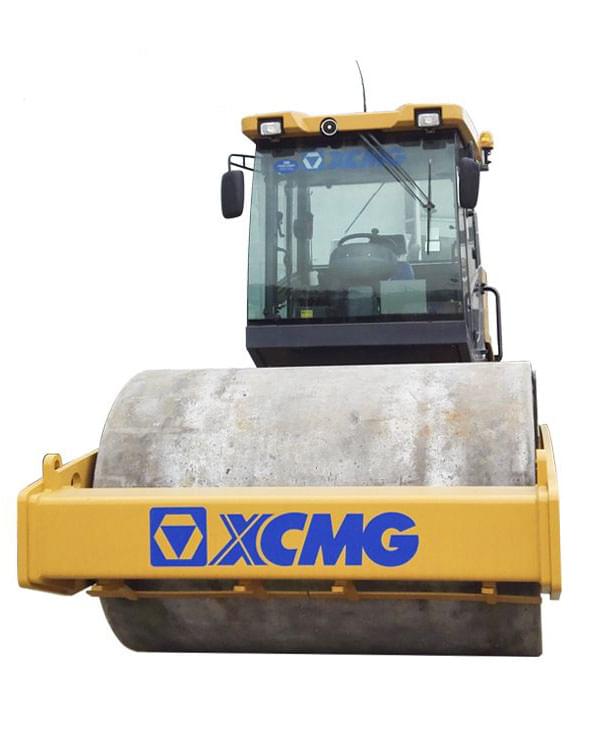

XCMG  XS123H Road Roller

The XS123H fully hydraulicsingle-drivevibratory roller is more comfortable to operate and offerssuperior compactionperformance and efficiency. It is suitable for compactionoperations such asconcrete, stabilized soil, pebbles, sandy soil, and stickysoil. It is an idealcompaction device for the construction of high-gradehighways, airports, ports,and embankments.


Description
Unit
Parameter value

Work weight
kg
12000



Drive wheel distribution weight
kg
6400

Vibratory drum distribution weight
kg
5600

Static line load
N/cm
258

DrVibration frequency
Hz
30/35

Theoretical amplitude
mm
1.8/0.9

Exciting force
kN
240/160

Speed range
km/h
0-7.3

Wheelbase
mm
3040

Compaction width
mm
2130

Theoretical climbing ability
%
30

Minimum turning radius
mm
6800

Vibratory drum diameter
mm
1513

Minimum ground clearance
mm
431

Engine
Model
SC4H135G2

Rated speed
r/min
2200

Rated power
kW
100

Dimensions
mm
6150×2300×3200

Vibration system pressure
MPa
18

Steering system pressure
MPa
16
