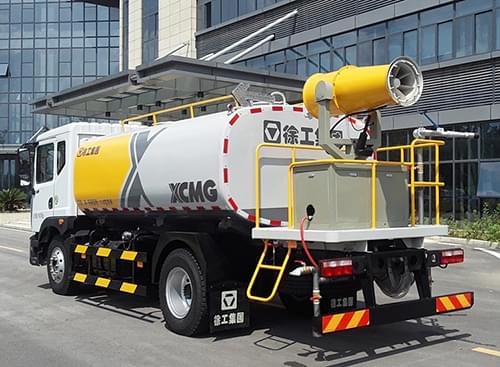

XZJ5161GQXD5 cleaning car has independent high and low pressure water system. High pressure water can clean road surface, curb, sidewalk and guardrail isolation area; high pressure spray gun can also clean road signs, billboards, elevated roads, etc.; spray system has powerful spray Dust, spray air disinfectant and adjust air humidity. Low-pressure water can be sprinkled with water to reduce dust and green water.

Performance Characteristics:
* It has independent high and low pressure water system and high pressure cleaning and watering function. The sub engine drives the high pressure water pump. The chassis engine drives the low pressure water pump. The high pressure cleaning speed can be controlled arbitrarily.

* The front water spray frame is controlled by the oil cylinder to extend and retract, rise and fall, and deflect. The cleaning width can be adjusted from 2.5m to 3.5m; the nozzle forward tilt angle can be adjusted from 25° to 40°;

* The high and low pressure waterways are equipped with anti-freeze water blowing device interfaces to prevent freezing of water components during low temperature in winter.

* The clean water tank has a low water level alarm function and an alarm function to prevent the water pump from running out of water, effectively protecting the high pressure water pump.

* The low-pressure waterway system uses a two-stage impeller centrifugal pump with high efficiency, large sprinkling width and long range of water guns. It can also be equipped with green watering and self-priming functions.


Dimensions (mm)
9010*2500*2950
Total mass (kg)
16000
Curing quality (kg)
8400
Effective volume of tank (m3)
7.52
Working speed (km/h)
5~20
Low pressure flushing width (m)
≥24
High pressure cleaning width (m)
2.5-3.5
Sprinkling capacity (L/ m2)
0.2~2.0
High pressure flushing system pressure (MPa)
≥9
High pressure flushing water flow (L/min)
≥134
Water gun range (m)
≥38
Self-priming height (m)
6
